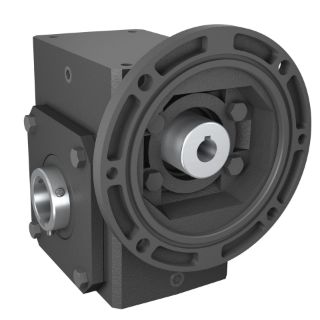

Actual Product May Vary From Image

425 60/1 A WR 56C 2.000 HUB

Name: 425 60/1 A WR 56C 2.000 HUB
SKU: 425 60/1 A WR 56C 2.000 HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-17334 W420PCX Right Angle Single Reduction Style A Worm Gear Reducer, C-Face Quill Input, Hollow Bore Output, 3.55 hp Input, 60:1 Gear, 29.2 rpm Maximum Output, 5371 in-lb Output Torque Rating

Manufacturer part number: 0230-17334

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W420PCX, 60:1 Gear Ratio, 3.55 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 2 in Dia Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5371 in-lb Output, 4-1/4 in Centre Distance, 70 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	4-1/4 in
Dimensions:	8-1/2 in W
Efficiency:	70 %
Gear Ratio:	60:1
Horsepower:	3.55 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	29.2 rpm
Output Size:	2 in Dia
Output Type:	Hollow Bore
Series:	W420PCX
Torque Rating:	5371 in-lb Output
