425 80/1 A WR 56C 1.438 HUB

Name: 425 80/1 A WR 56C 1.438 HUB
SKU: 425 80/1 A WR 56C 1.438 HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer part number:

0230-17251

product.name:

425 80/1 A WR 56C 1.438 HUB

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

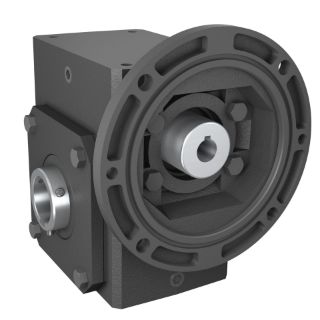

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W420PCX, 80:1 Gear Ratio, 2.35 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.438 in Dia Output, 21.9 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 4500 in-lb Output, 4-1/4 in Centre Distance, 66.5 % Efficiency, Conventional Oil Lubrication, Cast Iron, 8-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	4-1/4 in
Dimensions:	8-1/2 in W
Efficiency:	66.5 %
Gear Ratio:	80:1
Horsepower:	2.35 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	21.9 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	W420PCX
Torque Rating:	4500 in-lb Output
