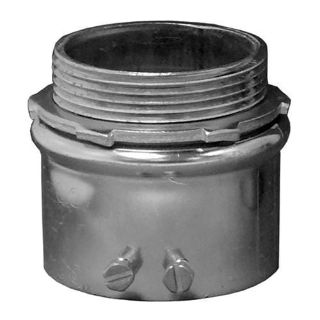

Picture of 4250S NER
Actual Product May Vary From Image

4250S NER

Appleton® ETP™ 4250S 4000S Non-Insulated Straight Set Screw Connector, 2-1/2 in Trade, For Use With EMT Conduit, Steel, Zinc Electroplated
Manufacturer: Appleton
Manufacturer part number: 4250S
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$16.22

Product Details

Brand Name

Appleton®

Type

Non-Insulated Straight

Description

Appleton® offer ETP™ 4000S Series steel EMT set screw connectors. They are used to ground and secure EMT raceways to boxes and enclosures. The 4000S Series have a male NPS threaded hub and are available with or without an insulated throat.
Appleton® ETP™ Set Screw Connector, Non-Insulated Straight, Series: 4000S, 2-1/2 in Trade, 3.13 in Diameter, For Use With: EMT Conduit, Steel, Metallic, Zinc Electroplated Finish, 2.38 in L Dimensions

Application

For grounding, securing EMT raceways to boxes and enclosures

Standards

CSA 028507 | C22.2 No. 18.3 | cUL E14895 | NEMA FB-1 | UL 514B File No. E14815 | UL File No. E14895

Features

  • Heavy steel walls
  • Concrete tight when tapped
  • Pre-set/pre-staked set screws
  • Male hub NPS thread connection
  • Insulated throat connector rated 90 deg C
  • Slotted hexhead screw

Specifications

Color:Metallic
Country of Origin:IN
Diameter:3.13 in
Dimensions:2.38 in L
Finish:Zinc Electroplated
Material:Steel
Series:4000S
Suitable For Use With:EMT Conduit
Trade Size:2-1/2 in
