42XLB037S BRN

Name: 42XLB037S BRN
Brand: Regal Rexnord
SKU: 42XLB037S BRN
Availability: OutOfStock

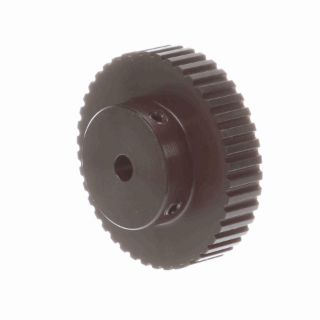

Browning® 1430867 Type 2A Synchronous Timing Pulley, 5/16 to 1 in, 2.654 in OD, 42 Grooves, 2.674 in Dia Pitch, 0.563 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1430867

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type 2A

Description

Browning® Gearbelt® Synchronous Timing Pulley, Type 2A, 5/16 to 1 in Bore, 2.654 in OD, 2.674 in Pitch Diameter, 42 Grooves, 1/5 in Pitch, 0.563 in Face Width, 1-1/2 in Diameter Hub, 0.438 in Hub Projection, MPB Bushing, 1 in Overall Length, For Use With: 3/8 in W Type XL Belt, Steel

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	5/16 to 1 in
Bushing Type:	MPB
Country of Origin:	US
Face Width:	0.563 in
Hub Diameter:	1-1/2 in
Hub Projection:	0.438 in
Material:	Steel
Number of Grooves:	42
Outside Diameter:	2.654 in
Overall Length:	1 in
Pitch:	1/5 in
Pitch Diameter:	2.674 in
Suitable For Use With:	3/8 in W Type XL Belt
