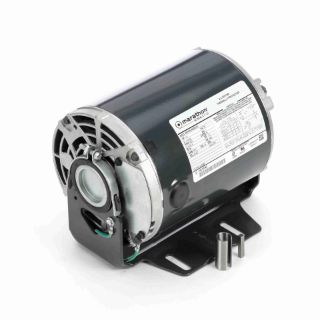

Actual Product May Vary From Image

4364 MAR

Name: 4364 MAR
Brand: Marathon Electric Motors
SKU: 4364 MAR
Availability: OutOfStock

1/4 HP General Purpose Motor, 1 phase, 1800 RPM, 115 V, 56Z Frame, ODP

Manufacturer: Marathon Electric Motors

Manufacturer part number: 4364

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Alternate Supplier #

5KH39QN5541X

Features

Heavy gauge steel frame and base Ball bearings (except as noted) 1.0 Service Factor Economical split phase or capacitor start designs, as noted 48Y and 48YZ have 48/56 Fr mounting holes UL Recognized and CSA Certified

Specifications

C Dim (IN):	9.19
CE:	N
Connection Drawing Number:	52A105379AA
Country of Origin:	Mexico
CSA:	Y
Current:	5.7
DE Bearing Type:	SLEEVE
Duty:	Continuous
Efficiency:	0
Electrical Type:	Split Phase
Enclosure Type:	Drip Proof
Frame Length (IN):	5.41
Frame Material:	Rolled Steel
Frame Size:	56
Frame Suffix:	Z
Frame Type:	56Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/4
Insulation Class:	B
KVA Code:	S
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Resilient Base
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Type:	SLEEVE
Outline Drawing Number:	52A106942P1
Phases:	1
Power Factor:	0
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Rotation:	Counterclockwise/Clockwise
Service Factor:	1
Shaft Extension:	.500 X 1.5 - FLAT
Speed:	1725
Speed Max:	1725
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	AUTO
UL:	Recognized
Voltage:	115

Resources

Spec Sheet
