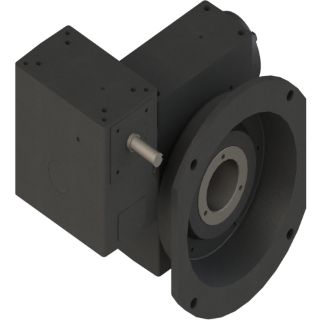

Picture of 4503 250/1 WR STD (SIDE MT) HUB
Actual Product May Vary From Image

4503 250/1 WR STD (SIDE MT) HUB

Hub City® PowerCubeX® 0230-37166 4500 Double Reduction Right Angle Standard Worm Gear Reducer With Side Mounting Flange, Shaft Input, Hollow Bore Output, 2.26 hp Input, 250:1 Gear, 7 rpm Maximum Output, 10320 in-lb Output Torque Rating
Manufacturer part number: 0230-37166
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 4500, 250:1 Gear Ratio, 2.26 hp Input, Shaft Input, Hollow Bore Output, 0.875 in Dia x 2.38 in L Input, 7 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 10320 in-lb Output, 4-1/2 in Centre Distance, 3/16 x 3/32 in Input Keyway, 50.6 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and Increased efficiency
  • Alloy shafting
  • QD™ bushings provide widest possible range of bore size in shaft mounted models

Specifications

Centre Distance:4-1/2 in
Efficiency:50.6 %
Gear Ratio:250:1
Horsepower:2.26 hp Input
Input Maximum Speed:1750 rpm
Input Size:0.875 in Dia x 2.38 in L
Input Type:Shaft
Keyway Size:3/16 x 3/32 in Input
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:7 rpm
Output Type:Hollow Bore
Series:4500
Torque Rating:10320 in-lb Output
