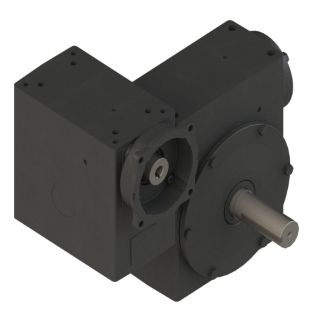

Actual Product May Vary From Image

4504 1800/1 WR 143TC DOUBLE OUTPUT HUB

Name: 4504 1800/1 WR 143TC DOUBLE OUTPUT HUB
SKU: 4504 1800/1 WR 143TC DOUBLE OUTPUT HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-37236 4500 Double Reduction Double Output Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 0.71 hp Input, 1800:1 Gear, 0.97 rpm Maximum Output, 15480 in-lb Output Torque Rating

Manufacturer part number: 0230-37236

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Double Output Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Double Output Right Angle, Series: 4500, 1800:1 Gear Ratio, 0.71 hp Input, C-Face Quill Input, Shaft Output, 7/8 in Dia Input, 1.625 in Dia x 4.18 in L Output, 0.97 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 15480 in-lb Output, 4-1/2 in Centre Distance, 3/8 x 3/16 in Output Keyway, 33.4 % Efficiency, Conventional Oil Lubrication, Cast Iron, 14-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and Increased efficiency
Alloy shafting

Specifications

Centre Distance:	4-1/2 in
Dimensions:	14-1/2 in W
Efficiency:	33.4 %
Gear Ratio:	1800:1
Horsepower:	0.71 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	0.97 rpm
Output Size:	1.625 in Dia x 4.18 in L
Output Type:	Shaft
Series:	4500
Torque Rating:	15480 in-lb Output
