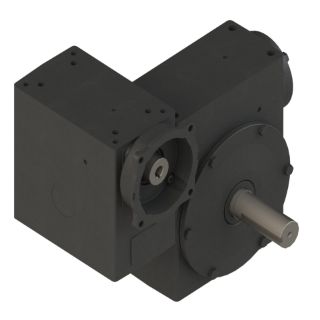

Picture of 4504 200/1 WR 56C DOUBLE OUTPUT HUB
Actual Product May Vary From Image

4504 200/1 WR 56C DOUBLE OUTPUT HUB

Hub City® PowerCubeX® 0230-37185 4500 Double Reduction Double Output Right Angle Worm Gear Reducer, C-Face Quill Input, Shaft Output, 3.08 hp Input, 200:1 Gear, 8.75 rpm Maximum Output, 13300 in-lb Output Torque Rating
Manufacturer part number: 0230-37185
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Hub City®

Type

Double Reduction Double Output Right Angle

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Double Output Right Angle, Series: 4500, 200:1 Gear Ratio, 3.08 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.625 in Dia x 4.18 in L Output, 8.75 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 13300 in-lb Output, 4-1/2 in Centre Distance, 3/8 x 3/16 in Output Keyway, 60 % Efficiency, Conventional Oil Lubrication, Cast Iron, 14-1/2 in W

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

  • Modular design
  • Universal mounting dimensions
  • Increased thermal capacity and Increased efficiency
  • Alloy shafting

Specifications

Centre Distance:4-1/2 in
Dimensions:14-1/2 in W
Efficiency:60 %
Gear Ratio:200:1
Horsepower:3.08 hp Input
Input Maximum Speed:1750 rpm
Input Size:5/8 in Dia
Input Type:C-Face Quill
Keyway Size:3/8 x 3/16 in Output
Lubrication Type:Conventional Oil
Material:Cast Iron
Output Maximum Speed:8.75 rpm
Output Size:1.625 in Dia x 4.18 in L
Output Type:Shaft
Series:4500
Torque Rating:13300 in-lb Output
