450H150 GAT

Name: 450H150 GAT
Brand: Gates Rubber
SKU: 450H150 GAT
Price: 86.43 USD
Availability: InStock

Gates® PowerGrip® 450H150 Heavy Timing Belt, 1-1/2 in W, 45 in OAL, 1/2 in Pitch, 90 Teeth, Neoprene

Manufacturer: Gates Rubber

Manufacturer part number: 450H150

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
2	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$86.43

Qty:

Product Details

Brand Name

Gates®

Type

Heavy

Description

The trapezoidal tooth profile of PowerGrip™ Timing belts offers a maintenance-free and economical alternative to conventional chain drives and is well suited for use in positioning applications.

Gates® PowerGrip® Timing Belt, Heavy, Series: 9257, 90 Teeth, 1/2 in Pitch, 45 in Overall Length, 1-1/2 in Width, 3.13 in Minimum Pulley Dia, -30 to 180 deg F, Neoprene, Fiberglass Reinforced Material

Application

Office Machines, Machine Tools, Postage Equipment, Sewing Machines, Vending Machines, Agriculture, Outdoor Power Equipment, Food Processing, HVAC, Oil Fields, Wood, Paper, Sand and Gravel Applications

Standards

RMA Standard

Features

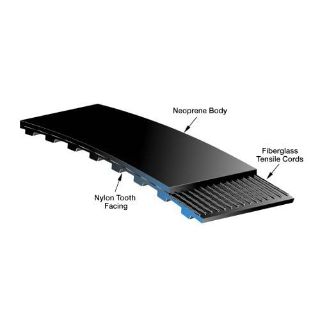

Fiberglass tensile cord provides high strength, excellent flex life and high resistance to elongation
Nylon tooth facing provides a durable wear surface for long service life
Eliminates lubrication and re-tensioning to reduce maintenance and labor required on drives
Neoprene body provides protection against grime, grease, oil and moisture
The trapezoidal tooth profile makes this belt well suited for use in positioning applications

Specifications

Country of Origin:	US
Material:	Neoprene
Minimum Pulley Diameter:	3.13 in
Number of Teeth:	90
Overall Length:	45 in
Pitch:	1/2 in
Reinforced Material:	Fiberglass
Series:	9257
Temperature Range:	-30 to 180 deg F
Width:	1-1/2 in
