Actual Product May Vary From Image

45ET BSF

Name: 45ET BSF
Brand: Bussmann
SKU: 45ET BSF
Availability: OutOfStock

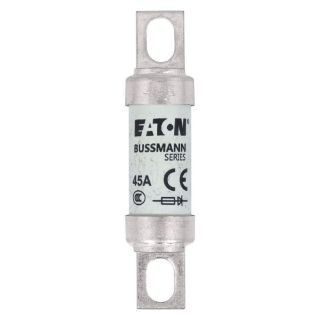

Bussmann 45ET Type ET British Standard BS88 Semi-Conductor High Speed British Standard Fuse, 45 A, 690 VAC, 200 kAIC Interrupt, Class: AR, Cartridge Body

Manufacturer: Bussmann

Manufacturer part number: 45ET

Availability: Expected Leadtime 31 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Type ET British Standard BS88 Semi-Conductor

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed British Standard Fuse, Type ET British Standard BS88 Semi-Conductor, Indicating/Non-Indicating: Non-Indicating, 45 A, 690 VAC, 200 kAIC Interrupt, Class: AR, Blade End Terminal, Stud Mount, Cartridge Body Type, 77 mm L x 17.1 mm W x 19.1 mm H Body Size

Application

Power Distribution and Control, Electrical Assemblies, Panels and EOEM - Panel Builders: Electrical Assemblies, Panels and EOEM - Electrical Assemblies/Panels/EOEMs - Aftermarket: Electrical Assemblies, Panels and EOEMs - Control Panels for Machines: Electrical Assemblies, Panels and EOEM - Electrical Assemblies and EOEMs - Other , Industrial Facilities and Factory Facilities, Safety and Security Systems, DC Common Bus, DC Drives, Power Converters/Rectifiers and Reduced Voltage Starters Applications

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

200 kA rms symmetrical, 50 kA at 500 VDC interrupt rating
Low arc voltage, excellent cycling capacity, excellent DC performance, power loss 11 W

Specifications

Amperage Rating:	45 A
Body Size:	77 mm L x 17.1 mm W x 19.1 mm H
Body Type:	Cartridge
Class:	AR
Country of Origin:	IN
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kAIC
Mounting Type:	Stud
Terminal Type:	Blade End
Voltage Rating:	690 VAC
