Actual Product May Vary From Image

45V750SF BRN

Name: 45V750SF BRN
Brand: Regal Rexnord
SKU: 45V750SF BRN
Price: 431.83 USD
Availability: OutOfStock

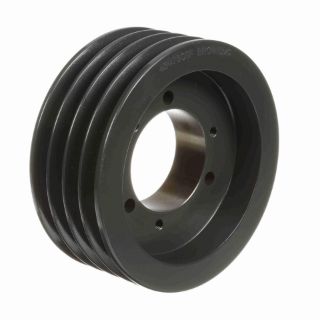

Browning® 1065937 Type A Solid Multiple Sheave, 1/2 to 2-15/16 in QD® Bore, 7-1/2 in OD, 4 Grooves, 7.4 in Dia Pitch, 3-1/16 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1065937

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$431.83

Qty:

Product Details

Brand Name

Browning®

Type

Type A Solid

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type A Solid, QD® Bore, 1/2 to 2-15/16 in Bore, 7-1/2 in OD, 7.4 in Pitch Diameter, 4 Grooves, 3-1/16 in Face Width, SF Bushing, For Use With: GripBelt® 5V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:	1/2 to 2-15/16 in
Bore Type:	QD®
Bushing Type:	SF
Country of Origin:	MX
Face Width:	3-1/16 in
Material:	Cast Iron
Number of Grooves:	4
Outside Diameter:	7-1/2 in
Pitch Diameter:	7.4 in
Suitable For Use With:	GripBelt® 5V Cross Section V-Belt
