469 90129 TKN

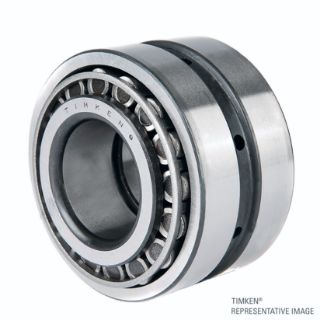

Picture of 469 90129 TKN
Actual Product May Vary From Image

Product Details

Manufacturer:
Timken
Manufacturer part number:
469-90129
CBT Inventory
0
Vendor Inventory
Please login to see accurate availability
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Price on Request
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.
TRB Double Cup Assembly | Imperial | 108 mm 4.3 in OD | 65.1 mm 2.6 in Width

Features

  • Widest choice including both inch and metric sizes
  • Engineered to deliver higher speeds, heavier loads and longer life
  • Unrivaled technology and engineering support
  • Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:Assembly
Assembly Number:90129
Bearing Material:Steel
Bearing Type:Unmounted Tapered Roller Bearing
Bore Type:Straight Bore
Cage (Retainer) Type:Steel
Cage Material:Steel
Component (I/R; O/R assembly):Assembly
Dynamic Load Rating:62900
Inner Race Width (in):2.5626
Inner Race Width (mm):65.09004
Load Rating UOM:LB
Material - Rolling Elements:Steel
Outer Diameter (in):4.25
Outer Diameter (mm):107.95
Outer Diameter Type:Straight OD
Outer Race Width (in):2.125
Outer Race Width (mm):53.975
Overall Width (in):2.5626
Overall Width (mm):65.09004
Precision class:Class 2 (Standard)
Raceway Style:Tapered Roller Bearing
Rolling Element:Tapered Roller
Row Type:Double
Static Load Rating:74400
