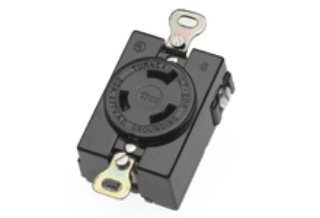

Actual Product May Vary From Image

4749 WOO

Name: 4749 WOO
Brand: Molex/Woodhead
SKU: 4749 WOO
Availability: OutOfStock

Woodhead® 4749 130149 Heavy Duty Single Locking Receptacle, 277 VAC, 20 A, 2 Poles, 3 Wires, Black

Manufacturer: Molex/Woodhead

Manufacturer part number: 4749

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Heavy Duty Single

Description

Woodhead® Locking Receptacle, Heavy Duty Single, Series: 130149, 277 VAC, 20 A, 2 Pole, 3 Wires, NEMA L7-20 NEMA Rating, Industrial/Specification Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black

Features

Multiple seal plug/connector interface keeps out contaminants resists vapor and water from high pressure wash down up to 1000 psi
Color coded 1/4 in terminal screws pre-set in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cable without damaging the cable

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	MX
Grade:	Industrial/Specification
Material:	Nylon
NEMA Rating:	NEMA L7-20
Number of Poles:	2
Number of Wires:	3
Series:	130149
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	277 VAC
