47602-24E LEV

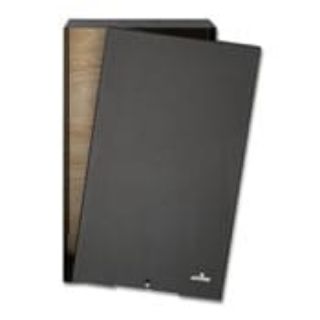

Leviton® Structured Media+® 47602-24E Enclosure Panel, 24 in H x 14 in W
Manufacturer: Leviton Manufacturing
Manufacturer part number: 47602-24E
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Media Versatile

Description

Ideal for custom retrofit and remodel applications, the media versatile panel with 3/4 in plywood backing allows an open architecture for consolidating low voltage electronics and distribution components for phone, fax/modem, data, home networking, audio, video and home control. The 24 in high cold-rolled steel panel with securable door will accommodate a wide variety of Structured Media® distribution modules by simply removing the grommets and attaching directly to the plywood backing. The sturdy construction is built to industrial grade standards and the panel can be surface mounted or recessed in the wall. (Optional mounting brackets may be used for non-standard stud spacing). Ideal for custom retrofit and remodel applications. Available in black powder coat finish.
Leviton® Structured Media+® Enclosure Panel, 24 in Height, 14 in W, Steel, Black

Application

For residential structured wiring, new installations and retrofits applications

Standards

UL Listed

Features

  • Eight 1 in or 1-1/2 in conduit fittings on top and bottom facilitate cable entry and routing
  • Securable door provides maximum protection from dust and abuse
  • Plywood backing allows open architecture for customizing layout and can accommodate a wide variety of structured Media® distribution module

Specifications

Color:Black
Country of Origin:MX
Depth:6 in
Height:24 in
Material:Steel
Mounting Type:Flush
Width:14 in
