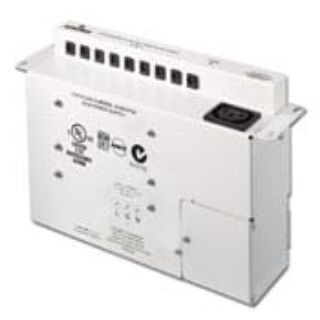

Actual Product May Vary From Image

47605-PSA LEV

Name: 47605-PSA LEV
Brand: Leviton Manufacturing
SKU: 47605-PSA LEV
Availability: OutOfStock

Leviton® 47605-PSA Universal Power Supply Module, 100 to 240 VAC, 15 A, Cable

Manufacturer: Leviton Manufacturing

Manufacturer part number: 47605-PSA

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Universal

Alternate Supplier #

Grainger - 25NU68

Description

These compact units are designed specifically to fit into Leviton® series 140, 280 and 420 Structured Media® enclosures. They are compatible with any incoming ac voltage in the range of 90 to 264 VAC, 50 or 60 Hz. They have three, six or nine 12 VDC connectors providing from 10 to 40 W of power. All modules provide short circuit overload and surge protection as well as EMI/RFI filtering to connected equipment.

Leviton® Power Supply Module, Universal, 100 to 240 VAC, 15 A, 0 to 50 deg C, Cable, Recessed Mount, White, 9.64 in L x 2.52 in W x 6.25 in H

Application

Residential Applications

Standards

ANSI C63.4 | cULus Listed, CSPR 16/22 | CSA Certified, EN 55022, EN 60950 | ISO 9001 | UL 1950, ACA

Features

Nine DC power connections
Foldback function automatically limits the output power protecting connected devices from overloads and short circuit overloads, if the draw on the DC output increases to 105 to 150% of nominal current, the power will be limited to 40 W
One green LED indicates DC output is present
Efficient circuitry operates at a low temperature
Easily installed using a terminal block to connect the incoming line, neutral and ground
Drops into knockouts located on the bottom panel of Leviton® series 280 and 420 Structured Media® enclosures

Includes

(9) 48 in Connector Cables

Specifications

Amperage Rating:	15 A
Color:	White
Connection Type:	Cable
Country of Origin:	MX
Dimensions:	6.25 in H x 2.52 in W x 9.64 in D
Mounting Type:	Recessed
Temperature Rating:	0 to 50 deg C
Voltage Rating:	100 to 240 VAC
