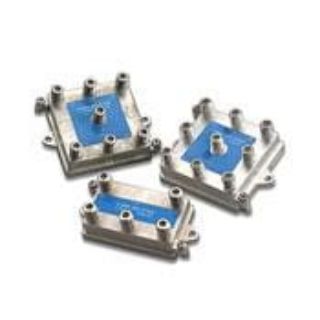

Actual Product May Vary From Image

47690-4 LEV

Name: 47690-4 LEV
Brand: Leviton Manufacturing
SKU: 47690-4 LEV
Availability: OutOfStock

Leviton® 47690-4 4-Way Passive Video Splitter, F-Type Input, F-Type Output, 75 Ohm Impedance

Manufacturer: Leviton Manufacturing

Manufacturer part number: 47690-4

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

4-Way

Description

Use 4-, 6- and 8-way 1 GHz passive video splitters and passive video splitter modules to split digital cable, quality cable TV and off-air signals to 4, 6 or 8 televisions throughout a home or office. The video splitter modules are designed for easy installation in any Leviton 140, 280 or 420 Structured Media Enclosure. The video Splitters are easily installed in Leviton MDU enclosures or used in any application where a passive video splitter is needed. These units feature die cast housings and printed circuit board construction.

Leviton® Passive Video Splitter, 4-Way, F-Type Input, F-Type Output, 75 Ohm Impedance, Surface Mounting, Die Cast Zinc, Silver, 1.66 in L x 3.36 in W x 1.14 in H

Application

Residential Applications

Standards

SCTE Certified | ATIC Listed

Features

Split video signals with outputs for 4, 6 or 8 televisions depending on unit
Provide digital cable, cable TV and other video services via coaxial Cable to any room in a house or office
Printed circuit board construction
Durable gold plated 360 insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
Weather sealed F-ports up to 30 psi
75 Ohm termination caps with splitter modules
Shielded for 130 dB RFI
Can be used with a video amplifier for increased signal quality
6 kV surge protection
Built-in capacitors on all ports block DC or low frequency AC and also prevent current from flowing through splitter ferrite core windings that cause hum modulation
High pressure plating passes 1200 hour salt spray test
Maintains low temperature stability from -40 to 85 deg C both in isolation and return loss
High precision machined, SCTE-compliant threaded ports spaced at intervals of 1 in center to center
5 to 1000 MHz range
1 GHz frequency range
7 to 8.1 dB insertion loss, 7.7 to 8.1 dB return loss dB forward, 28.5 to 48.5 dB isolation dB
Nickel plated F-connectors tin plated zinc die cast housing and glass printed circuit board with micro strip design
18 AWG sheet metal
Splits TV signal, die cast housing and printed circuit board

Specifications

Color:	Silver
Country of Origin:	CN
Dimensions:	1.66 in L x 3.36 in W x 1.14 in H
Impedance:	75 Ohm
Input Type:	F-Type
Material:	Die Cast Zinc
Mounting Type:	Surface
Output Type:	F Type
