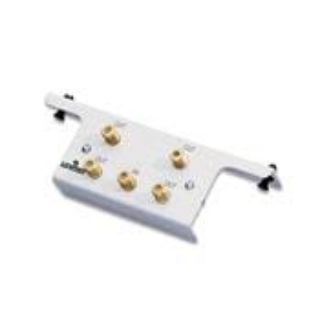

Actual Product May Vary From Image

47690-4C2 LEV

Name: 47690-4C2 LEV
Brand: Leviton Manufacturing
SKU: 47690-4C2 LEV
Availability: OutOfStock

Leviton® 47690-4C2 4-Way Coaxial Cable Distribution Module, F-Type Input, F-Type Output, 75 Ohm Impedance

Manufacturer: Leviton Manufacturing

Manufacturer part number: 47690-4C2

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

4-Way

Description

Use 4-, 6- and 8-way 1 GHz passive video splitters and passive video splitter modules to split digital cable, quality cable TV and off-air signals to 4, 6 or 8 televisions throughout a home or office. The video splitter modules are designed for easy installation in any Leviton 140, 280 or 420 Structured Media Enclosure. The video Splitters are easily installed in Leviton MDU enclosures or used in any application where a passive video splitter is needed. These units feature die cast housings and printed circuit board construction.

Leviton® Coaxial Cable Distribution Module, 4-Way, F-Type Input, F-Type Output, 75 Ohm Impedance, Die Cast Zinc, White, 2.14 in L x 6.58 in W x 1.4 in H

Application

Residential Applications

Standards

SCTE Certified | ATIC Listed | cULus Listed

Features

Splits video signals, outputs for up to 4 televisions
Provide digital cable, cable TV and other video services via coaxial Cable to any room in a house or office
Use with the video amplifier to increase signal quality, analog or standard cable applications only
Units come with mounting bracket and 75 Ohm termination caps
Die cast housing and printed circuit board
Steel powder coated bracket material
7.7 to 10.5 dB insertion loss, 9.5 to 21 dB return loss dB forward, 24 to 30 dB isolation dB
2 GHz frequency range
Splits TV signal, die cast housing and printed circuit board

Includes

Mounting Bracket

Specifications

Color:	White
Country of Origin:	CN
Dimensions:	2.14 in L x 6.58 in W x 1.4 in H
Impedance:	75 Ohm
Input Type:	F-Type
Material:	Die Cast Zinc
Output Type:	F Type
