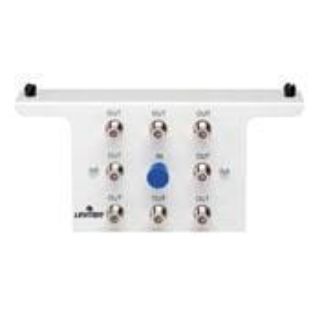

Actual Product May Vary From Image

47690-8C LEV

Name: 47690-8C LEV
Brand: Leviton Manufacturing
SKU: 47690-8C LEV
Availability: OutOfStock

Leviton® 47690-8C 8-Way Coaxial Cable Distribution Module, F-Type Input, F-Type Output, 75 Ohm Impedance

Manufacturer: Leviton Manufacturing

Manufacturer part number: 47690-8C

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

8-Way

Description

Leviton®'s 1x8 passive CATV module routes incoming RF signals (HDTV, cable TV, Antenna and more) to up to 8 locations throughout the home or office on coaxial cable. The module incorporates state-of-the-art bi-directional circuitry to support advanced interactive applications such as a cable modem, digital cable communications for video on demand and standard inputs like incoming CATV and over-the-air antennas. This premium CATV module is ready to handle the latest cable TV or data technology for cutting-edge HDTV, video streaming, gaming and high speed Internet.

Leviton® Coaxial Cable Distribution Module, 8-Way, F-Type Input, F-Type Output, 75 Ohm Impedance, Die Cast Zinc, White, 3 in L x 6.58 in W x 1.4 in H

Application

Residential Applications

Standards

cULus, ATIC Listed | SCTE Standard

Features

Split video signals with outputs for 4, 6 or 8 televisions depending on unit
Provide digital cable, cable TV and other video services via coaxial Cable to any room in a house or office
Printed circuit board construction
Passive video splitter modules come with mounting bracket for easy installation in any Leviton® 140, 280 or 420 Structured Media enclosure (SMC), passive splitters are easily installed in Leviton® MDU enclosures
Durable gold plated 360 insert pin resists oxidation, maintaining a distortion-free signal for digital data transmission
Weather sealed F-ports up to 30 psi
75 Ohm termination caps with splitter modules
Shielded for 130 dB RFI
Can be used with a video amplifier for increased signal quality
6 kV surge protection
Built-in capacitors on all ports block DC or low frequency AC and also prevent current from flowing through splitter ferrite core windings that cause hum modulation
High pressure plating passes 1200 hour salt spray test
Maintains low temperature stability from -40 to 85 deg C both in isolation and return loss
High precision machined, SCTE-compliant threaded ports spaced at intervals of 1 in center to center
5 to 1000 MHz range
1 GHz frequency range
11.5 to 13 dB insertion loss, 11.5 to 23.5 dB return loss dB forward, 34 to 65 dB isolation dB
Nickel plated F-connectors tin plated zinc die cast housing and glass printed circuit board with micro strip design
18 AWG sheet metal
Splits TV signal, die cast housing and printed circuit board

Includes

Mounting Bracket

Specifications

Color:	White
Country of Origin:	CN
Dimensions:	3 in L x 6.58 in W x 1.4 in H
Impedance:	75 Ohm
Input Type:	F-Type
Material:	Die Cast Zinc
Mounting Type:	Panel
Output Type:	F Type
