Actual Product May Vary From Image

4773 MAR

Name: 4773 MAR
Brand: Marathon Electric Motors
SKU: 4773 MAR
Availability: OutOfStock

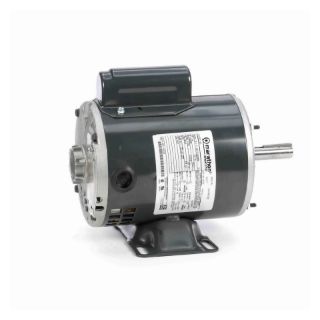

Marathon® 5KH39BN5016U 2-Pole Continuous Duty Split Phase AC Motor, Totally Enclosed Nonvented (TENV) Enclosure, 0.13 hp, 115 VAC, 60 Hz, 1 ph Phase, 48N Frame, 1725 rpm Speed, 2-Bolt Flange Mount

Manufacturer: Marathon Electric Motors

Manufacturer part number: 5KH39BN5016U

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Marathon®

Type

2-Pole Continuous Duty Split Phase

Description

Marathon® AC Motor, 2-Pole Continuous Duty Split Phase, Application Type: Oil Burner Motors, Special Features: Capacitor Start Motors, 0.13 hp, 115 VAC, 2.4 A, 60 Hz, 1 ph, 1725 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 48N Frame, 1/2 in Dia Shaft, CW/CCW, Service Factor: 1, Sleeve Bearing, 2-Bolt Flange Mount, 40 deg C, Insulation Class: Class B, 7.6 in L x 6.52 in W x 6.375 in H

Application

For residential and commercial hot water pressure/steam cleaners

Standards

CSA Certified | UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	2.4 A
Application Type:	Oil Burner Motors
Bearing Type:	Sleeve
Country of Origin:	MX
Dimensions:	7.6 in L x 6.52 in W x 6.375 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	48N
Frequency Rating:	60 Hz
Horsepower:	0.13 hp
Insulation Class:	Class B
Mounting Type:	2-Bolt Flange
Number of Speeds:	1
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1
Shaft Size:	1/2 in Dia
Speed:	1725 rpm
Temperature Rating:	40 deg C
Voltage Rating:	115 VAC
