4774 LEE

Name: 4774 LEE
Brand: Marathon Electric Motors
SKU: 4774 LEE
Price: 285.13 USD
Availability: OutOfStock

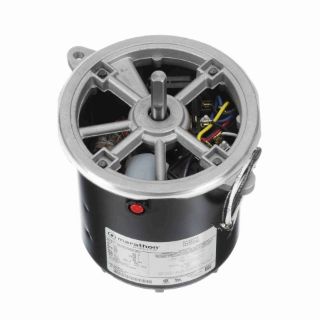

Actual Product May Vary From Image

Manufacturer:

Manufacturer part number:

4774

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$285.13 / EA

Description

5KH33GN5014U

Semi-enclosed steel frame 20” Long leads from a 1/2” NPT opening Split phase design Two-bolt, NEMA N- or M-Flange direct Sleeve bearing

C Dim (IN):	8.45
CE:	N
Connection Drawing Number:	52A105379AH
Country of Origin:	Mexico
CSA:	Y
Current:	4.9
DE Bearing Size:	6203
DE Bearing Type:	BALL
Duty:	Continuous
Efficiency:	62.6
Electrical Type:	Split Phase
Enclosure Type:	Totally Enclosed Non Ventilated
Frame Length (IN):	5.41
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	N
Frame Type:	48N
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	1/3
Insulation Class:	B
KVA Code:	P
Max Ambient:	40°C
Motor Orientation:	ANY
Mounting Type:	Round
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	BALL
Outline Drawing Number:	52A113116P1
Phases:	1
Power Factor:	0
Power Rating (HP):	0.33
Power Rating (kW):	0.25
Rotation:	Clockwise/Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.5
Shaft Extension:	1.88
Speed:	3450
Speed Max:	3450
Starting Type:	SM
Thru-bolts Extension:	0
Type of Overload Protector:	MAN
UL:	Recognized
Voltage:	115
