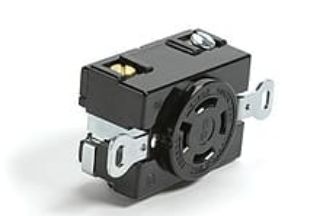

Actual Product May Vary From Image

4775 WOO

Name: 4775 WOO
Brand: Molex/Woodhead
SKU: 4775 WOO
Availability: OutOfStock

Woodhead® 4775 130149 Female Heavy Duty Single Locking Receptacle With Locking Blade, 250 VAC, 20 A, 3 Poles, 4 Wires, Black

Manufacturer: Molex/Woodhead

Manufacturer part number: 4775

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Female Heavy Duty Single

Description

Woodhead® Locking Receptacle, Female Heavy Duty Single, Series: 130149, 250 VAC, 20 A, 3 Pole, 4 Wires, NEMA L15-20 NEMA Rating, Specification Grade, -40 to 75 deg C, Screw Terminal, Nylon, Black

Standards

CSA File No. LR6837 | UL File No. E68122

Features

NEO-TEX® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway™ offering
Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Two-piece cable clamp strain relief includes tri-drive screws to firmly secure the cable
3-phase

Specifications

Amperage Rating:	20 A
Color:	Black
Country of Origin:	MX
Grade:	Specification
Material:	Nylon
NEMA Rating:	NEMA L15-20
Number of Poles:	3
Number of Wires:	4
Series:	130149
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
