4782 MAR

Name: 4782 MAR
Brand: Marathon Electric Motors
SKU: 4782 MAR
Availability: OutOfStock

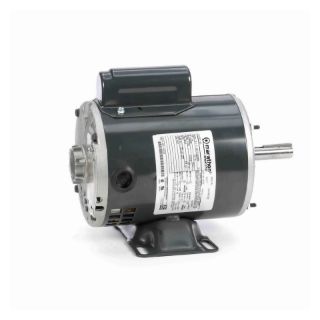

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

5KH39BN5017U

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Marathon®

Type

4-Pole Continuous Duty Split Phase

Description

Marathon® AC Motor, 4-Pole Continuous Duty Split Phase, Application Type: Oil Burner Motors, Special Features: Capacitor Start Motors, 1/6 hp, 115 VAC, 2.9 A, 60 Hz, 1 ph, 850 rpm, 1 Speed, Totally Enclosed Nonvented (TENV), 48N Frame, 1/2 in Dia Shaft, CW/CCW, Service Factor: 1, Sleeve Bearing, 2-Bolt Flange Mount, 40 deg C, Insulation Class: Class B, 7.4 in L x 6.52 in W x 6.375 in H

Application

For residential and commercial hot water pressure/steam cleaners

Standards

UL Listed

Features

Capacitor Start Motors

Specifications

Amperage Rating:	2.9 A
Application Type:	Oil Burner Motors
Bearing Type:	Sleeve
Country of Origin:	MX
Dimensions:	7.4 in L x 6.52 in W x 6.375 in H
Enclosure Type:	Totally Enclosed Nonvented (TENV)
Frame:	48N
Frequency Rating:	60 Hz
Horsepower:	1/6 hp
Insulation Class:	Class B
Mounting Type:	2-Bolt Flange
Number of Speeds:	1
Phase:	1 ph
Rotation:	CW/CCW
Service Factor:	1
Shaft Size:	1/2 in Dia
Speed:	850 rpm
Temperature Rating:	40 deg C
Voltage Rating:	115 VAC
