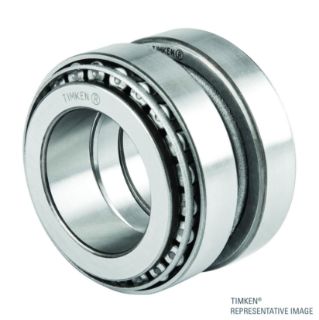

Actual Product May Vary From Image

47896 90021 TKN

Name: 47896 90021 TKN
Brand: Timken
SKU: 47896 90021 TKN
Availability: OutOfStock

Tapered Roller Bearing Two Single Row Assembly

Manufacturer: Timken

Manufacturer part number: 47896-90021

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

TRB Two-Single-Row Assembly | Imperial | 95.3 mm 3.8 in Bore | 146.1 mm 5.8 in OD | 79.4 mm 3.1 in Width

Features

Widest choice including both inch and metric sizes
Engineered to deliver higher speeds, heavier loads and longer life
Unrivaled technology and engineering support
Provides a solution for many fixed or floating bearing applications where simplicity of assembly is required

Specifications

Assembly Components:	Assembly
Assembly Number:	90021
Bearing Material:	Steel
Bearing Type:	Unmounted Tapered Roller Bearing
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	77100
Inner Race Width (in):	3.1274
Inner Race Width (mm):	79.43596
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	5.75
Outer Diameter (mm):	146.05
Outer Diameter Type:	Straight OD
Outer Race Width (in):	2.565
Outer Race Width (mm):	65.151
Overall Width (in):	3.1274
Overall Width (mm):	79.43596
Precision class:	Class 0 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	3.75
Shaft Size (mm):	95.25
Static Load Rating:	138000
