47Q15R21 DOD

Name: 47Q15R21 DOD
Brand: Dodge
SKU: 47Q15R21 DOD
Price: 5,558.96 USD
Availability: OutOfStock

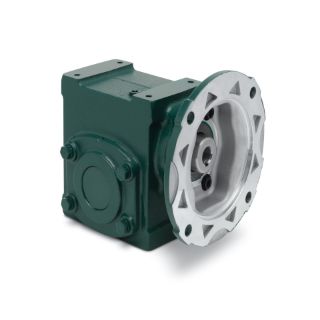

47Q15R21 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 47Q15R21

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$5,558.96

Qty:

Product Details

Base to Output Center Height:	5.3100
Base to Output Center Height (Unit):	INCH
Case Size:	47
Center Distance:	4.7500
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	9.0600
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	14.0500
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	12.4700
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 210TC Frame
Mounting Bolt Pattern Length:	11.0000
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	5.8100
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	15.0000
Output Shaft:	Right (Solid B)
Output Shaft Center to Input Motor Mounting Face Distance:	9.4700
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Right
Overhung Load:	5600
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	6739
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	2.0000
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	4.0100
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	14.1400
Thermal Horsepower Rating (Unit):	HORSEPOWER
