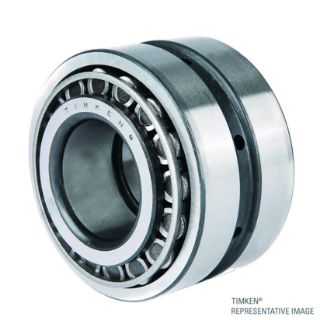

Actual Product May Vary From Image

497 903A1 TKN

Name: 497 903A1 TKN
Brand: Timken
SKU: 497 903A1 TKN
Availability: OutOfStock

Tapered Roller Bearing Double Cup Assembly

Manufacturer: Timken

Manufacturer part number: 497-903A1

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken

Description

Timken®is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With capacity to manage both radial and axial loads, high-performance Timken® tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space.

Tapered Roller Bearing Double Cup Assembly | 85.7 mm in Bore | 136.7 in 5.4 in OD mm 2.8 in Width

Features

Internal geometry provides increased stiffness and exceptional runout
Radial runout high point marked for accurate installation
Timken® outer (cup) and inner (cone) rings should be used in combination

Specifications

Assembly Components:	Assembly
Assembly Number:	903A1
Bearing Material:	Steel
Bearing Type:	Assembly
Bore Type:	Straight Bore
Cage (Retainer) Type:	Steel
Cage Material:	Steel
Component (I/R; O/R assembly):	Assembly
Dynamic Load Rating:	60500
Inner Race Width (in):	2.75
Inner Race Width (mm):	69.85
Load Rating UOM:	LB
Material - Rolling Elements:	Steel
Outer Diameter (in):	5.38
Outer Diameter (mm):	136.652
Outer Diameter Type:	Straight OD
Outer Race Width (in):	2.125
Outer Race Width (mm):	53.975
Overall Width (in):	2.75
Overall Width (mm):	69.85
Precision class:	Class 3 (Precision)
Raceway Style:	Tapered Roller Bearing
Rolling Element:	Tapered Roller
Row Type:	Single
Shaft Size (in):	3.375
Shaft Size (mm):	85.725
Static Load Rating:	97200
