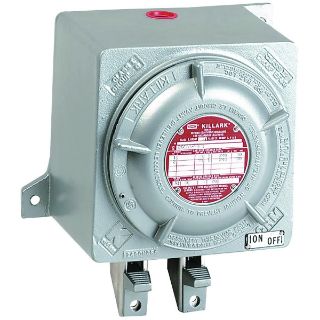

Picture of 4GCBB-1SP KIL
Actual Product May Vary From Image

4GCBB-1SP KIL

Killark® 4GCBB-1SP Loadcenter Enclosure With (1) Handle, (3) Plugs, NEMA 3R/7/9 NEMA Rating, 11-1/2 in L x 8-7/8 in W x 6-5/8 in D, Aluminum
Manufacturer: Killark
Manufacturer part number: 4GCBB-1SP
Availability: Expected Leadtime 25 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Killark®

Description

Killark® GCBB series of hazardous location circuit breaker loadcenters provide overcurrent and short circuit protection of service entrance, feeder or branch circuits, lighting, heating, appliance and motor circuits. Rated for indoor and outdoor applications, the copper free aluminum construction is ideal for harsh and hazardous environments. Circuit breaker configurations are available with various Eaton (Cutler Hammer) type QC quicklag breakers.
Killark® Loadcenter Enclosure, Series: GCBB, Aluminum Flat Cover, 11-1/2 in Length, 8-7/8 in Width, 6-5/8 in Depth, Wall Mounting, Aluminum, NEMA 3R/7/9

Application

For indoor and outdoor hazardous areas where flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings may be present, provides overcurrent and short circuit protection of branch lighting, heating, appliance circuits and (4) 1-pole 120 VAC feed-through circuit breaker loadcenter

Standards

UL Listed | cULus File No. E83969 | Class I, Div 1, 2, Group B, C, D | Class I, Zone 1, 2, Group IIB+H2, IIA | Class II, Div 1, 2, Group E, F, G | Class III, Div 1, 2

Features

  • Compact rectangular enclosure with threaded cover allows easy access
  • Provided with (4) 3/4-14 NPT drilled and tapped conduit openings, (2) top and (2) bottom
  • Push pull handle mechanism operates circuit breakers
  • Handle mechanism supplied as standard with "Lockout" in OFF position
  • Enclosures are made from copper free cast aluminum alloy (<4/10 of 1%)

Specifications

Country of Origin:US
Cover Type:Aluminum Flat
Depth:6-5/8 in
Length:11-1/2 in
Material:Aluminum
Mounting Type:Wall
NEMA Rating:NEMA 3R/7/9
Series:GCBB
Width:8-7/8 in
