4L360 GAT

Name: 4L360 GAT
Brand: Gates Rubber
SKU: 4L360 GAT
Price: 9.94 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Gates Rubber

Manufacturer part number:

4L360

product.name:

4L360 GAT

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$9.94 / EA

Description

Brand Name

Gates®

Type

Light Duty Banded

Alternate Supplier #

Motion Industries - 00697636

Description

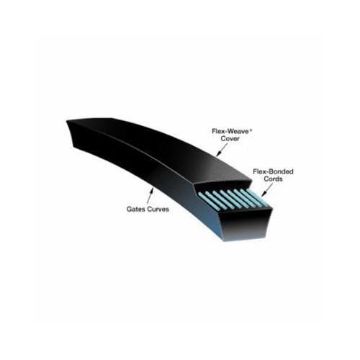

Engineered with all the qualities of a great belt, including flexibility, durability and resistance to contaminants. It includes a thin profile, designed for small-diameter sheaves and a lower cord positioning to improve belt performance on light-duty belt drives and in your backside idler applications.

Gates® Truflex® V-Belt, Light Duty Banded, Series: 8400, 4L Section, 1/2 in Top Width, 36 in Outside Length, 5/16 in Thickness, 1 Rib, 3.183 in Diameter Minimum Pulley, EPDM, Flex-Bonded Polyester Reinforced

Application

For all industrial light duty applications, usually using fractional horsepower (FHP) motors

Standards

ARPM/RMA IP-3-2/IP-3-3

Features

Flex-bonded cords are strongly bonded to the body of the belt resulting in equal load distribution and the absorption of bending stress without cord deterioration
The Flex-Weave® cover is constructed for longer cover life, providing extended protection to the core of the belt from oil, dirt and heat
Gates® curves provide proper cord support and full contact with the sheave groove for uniform loading, uniform wear and increased belt life
Truflex® belts feature superior length stability for minimal take up requirements

Specifications

Country of Origin:	MX
Material:	EPDM
Minimum Pulley Diameter:	3.183 in
Number of Ribs:	1
Outside Length:	36 in
Reinforced Material:	Flex-Bonded Polyester
Section Size:	4L
Series:	8400
Thickness:	5/16 in
Top Width:	1/2 in
