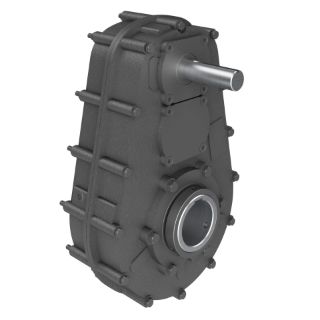

Actual Product May Vary From Image

4S 5.01/1 S 2.938 HUB

Name: 4S 5.01/1 S 2.938 HUB
SKU: 4S 5.01/1 S 2.938 HUB
Availability: OutOfStock

Hub City® 20-2007804 4 Series Type S Double Reduction Parallel Shaft Gear Drive, Shaft Input, Hollow Bore Output, 49.9 hp, 5.01:1 Gear, 350 rpm Maximum Output, 8536 in-lb Torque Rating

Manufacturer part number: 20-2007804

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Type S Double Reduction

Description

Parallel shaft gearing utilizes helical or spur gearing with shafts that are parallel and offset. Input connection can be facilitated using couplings, belt drives or C-face quill. Various output configurations are available. These gearboxes are used individually and also in combination with other gearboxes to easily fine tune the ratio to the application requirement.

Hub City® Parallel Shaft Gear Drive, Type S Double Reduction, Series: 4 Series, 5.01:1 Gear Ratio, 49.9 hp, Shaft Input, Hollow Bore Output, 1-1/4 in Dia Input, 1/4 x 1/8 in Input, 3/4 x 3/16 in Output Keyway, Oil Lubrication, Shaft Mounting, Cast Iron, 12 in L x 18-15/16 in H Dimensions

Features

Rugged cast iron housing
High strength gearing
Alloy shafting
Three input modes for integrating with hydraulic or electric motors or externally coupled drive sources
Heavy duty industrial seals

Specifications

Dimensions:	12 in L x 18-15/16 in H
Gear Ratio:	5.01:1
Horsepower:	49.9 hp
Input Size:	1-1/4 in Dia
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/4 x 3/16 in Output
Lubrication Type:	Oil
Material:	Cast Iron
Mounting Type:	Shaft
Output Type:	Hollow Bore
Series:	4 Series
