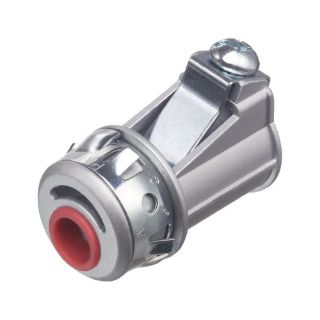

Actual Product May Vary From Image

5010AST ARL

Name: 5010AST ARL
Brand: Arlington
SKU: 5010AST ARL
Price: 1.77 USD
Availability: OutOfStock

Arlington Snap2IT® 5010AST Straight Cable Connector With Insulated Throat, 1/2 in Trade, 1/2 in Knockout, 0.56 to 0.85 in Cable Openings, Die Cast Zinc

Manufacturer: Arlington

Manufacturer part number: 5010AST

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$1.77

Qty:

Product Details

Brand Name

Arlington

Type

Straight

Alternate Supplier #

Grainger - 4JWG1

Description

Arlington Snap2IT® Cable Connector, Straight, 1/2 in Trade, 1/2 in Knockout, Cable Openings: 0.56 to 0.85 in, Aluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI-A/MCPCS Cable, Snap-In Connection, Die Cast Zinc, Silver, 2.21 in H x 1.514 in W Dimensions

Application

For steel and aluminum flexible conduit

Standards

CSA LR84319 | UL File No. E7819

Features

Installs as fast and costs the same as our other Snap2IT® fitting, but cable insertion is even easier!
Simply snap the cable into the fitting and snap it into the box, no tools needed! the screw only holds the clip-in place
Widest cable ranges, accommodates cable from 14/2 to 3/3 AWG
Super secure the angled, (2) prong clip locks down on MC cable so there no chance of pullout
Cable is removable, simply loosen the screw-on top
Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
Concrete tight when taped
Snaps into knockout with external spring steel clip

Specifications

Cable Openings:	0.56 to 0.85 in
Cable Type:	Aluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI-A/MCPCS
Color:	Silver
Connection Type:	Snap-In
Country of Origin:	US
Dimensions:	2.21 in H x 1.514 in W
Knockout Size:	1/2 in
Material:	Die Cast Zinc
Trade Size:	1/2 in
