Home / Motors / AC Three Phase Motors / .5018EP3ESS56CFL WEG

.5018EP3ESS56CFL WEG

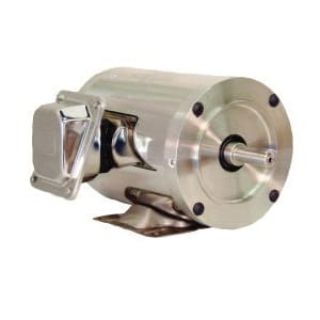

Picture of .5018EP3ESS56CFL WEG
Actual Product May Vary From Image

Product Details

Manufacturer:
WEG
Manufacturer part number:
.5018EP3ESS56CFL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
$689.00 / EA

Description

Brand Name

WEG

Type

C-Face High Efficiency

Alternate Supplier #

Applied Industrial Technologies - 101814172
Motion Industries - 02978829

Description

WEG AC Motor, C-Face High Efficiency, 1/2 hp, 208 to 230/460 VAC, 0.73 A, 60 Hz Frequency, 1800 rpm Speed, 1 Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 5/8 in Dia x 3-1/2 in L Shaft, Reversible Rotation, 1.149 Service Factor, Ball Bearing, Footless Mounting, 40 deg C, Insulation Class: Class F, Stainless Steel, 0.251 Constant Torque Speed, 0.417 ft-lb Variable Torque Speed, 11.26 in L x 8.73 in W x 6.7 in H Dimensions

Application

For food processing, pharmaceutical and other applications requiring extreme cleanliness and frequent washdowns

Standards

CE Marked | CSA Certified | UL Listed

Features

  • Motors are suitable for VFD operation (TEFC)
  • TEFC rated IP55 (gasketed conduit box and capacitor cover)

Specifications

Amperage Rating:0.73 A
Bearing Type:Ball
Constant Torque Speed Range:0.251
Dimensions:11.26 in L x 8.73 in W x 6.7 in H
Enclosure Type:Totally Enclosed Fan Cooled
Frame:56C
Frequency Rating:60 Hz
Horsepower:1/2 hp
Insulation Class:Class F
Material:Stainless Steel
Mounting Type:Footless
Number of Speeds:1
Rotation:Reversible
Service Factor:1.149
Shaft Size:5/8 in Dia x 3-1/2 in L
Speed:1800 rpm
Temperature Rating:40 deg C
Variable Torque Speed Range:0.417 ft-lb
Voltage Rating:208 to 230/460 VAC

Products Specifications

Brand Name
WEG
Horsepower
1/2 HP
Type
TEFC – Three-Phase – C-Face Footless
