Actual Product May Vary From Image

.5018OT1BW56-S WEG

Name: .5018OT1BW56-S WEG
Brand: WEG
SKU: .5018OT1BW56-S WEG
Price: 307.00 USD
Availability: OutOfStock

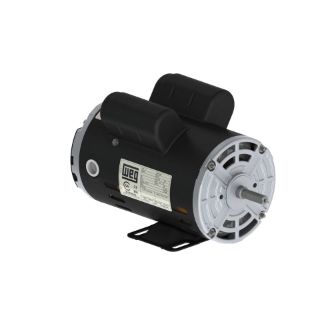

WEG .5018OT1BW56-S AC Motor, Open Drip-Proof Enclosure, 0.5 hp, 115/208/230 VAC, 60 Hz, 1 ph Phase, W56 Frame, 1800 rpm Speed, Footed Mount

Manufacturer: WEG

Manufacturer part number: .5018OT1BW56-S

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$307.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 112452217
Motion Industries - 07327648

Description

The high starting torque of this motor is the perfect option for applications that require robustness and high performance in a single product. They offer good thermal performance along with easy installation and maintenance. 182T frames and above are cast iron for severe duty use.

WEG AC Motor, General Purpose AC Motors Application, 0.5 hp, 115/208/230 VAC, 2.8 A, 60 Hz Frequency, 1 ph ph, 1800 rpm Speed, Open Drip-Proof Enclosure, W56 Frame, 1.25 Service Factor, Ball Bearing, 1.48 ft-lb Torque, Footed Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 10.654 in L Dimensions

Application

General Purpose Applications

Features

V-ring seals
NPT threaded terminal box

Specifications

Amperage Rating:	2.8 A
Application Type:	General Purpose AC Motors
Bearing Type:	Ball
Dimensions:	10.654 in L
Enclosure Type:	Open Drip-Proof
Frame:	W56
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	Footed
Phase:	1 ph
Service Factor:	1.25
Speed:	1800 rpm
Temperature Rating:	-20 to 40 deg C
Torque Rating:	1.48 ft-lb
Voltage Rating:	115/208/230 VAC
