Actual Product May Vary From Image

.5018XS3E56C WEG

Name: .5018XS3E56C WEG
Brand: WEG
SKU: .5018XS3E56C WEG
Price: 926.00 USD
Availability: OutOfStock

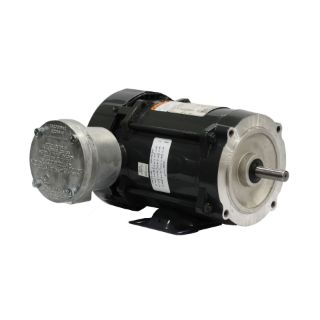

WEG .5018XS3E56C AC Motor, Totally Enclosed Fan Cooled Enclosure, 0.5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 1800 rpm Speed, C-Face Footed Mount

Manufacturer: WEG

Manufacturer part number: .5018XS3E56C

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$926.00

Qty:

Product Details

Brand Name

WEG

Alternate Supplier #

Applied Industrial Technologies - 110676852
Motion Industries - 06068048

Description

WEG AC Motor, Explosion Proof AC Motors Special Features, 0.5 hp, 208/230/460 VAC, 0.85 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, Totally Enclosed Fan Cooled Enclosure, 56C Frame, 1 Service Factor, Ball Bearing, 1.50 ft-lb Torque, C-Face Footed Mounting, 50 deg C, Insulation Class: Class F, Rolled Steel, 11.92 in L Dimensions

Standards

cULus Listed

Features

Explosion Proof AC Motors

Includes

Unassembled Aluminum Conduit Box

Specifications

Amperage Rating:	0.85 A
Bearing Type:	Ball
Dimensions:	11.92 in L
Enclosure Type:	Totally Enclosed Fan Cooled
Frame:	56C
Frequency Rating:	60 Hz
Horsepower:	0.5 hp
Insulation Class:	Class F
Material:	Rolled Steel
Mounting Type:	C-Face Footed
Phase:	3 ph
Service Factor:	1
Speed:	1800 rpm
Temperature Rating:	50 deg C
Torque Rating:	1.50 ft-lb
Voltage Rating:	208/230/460 VAC
