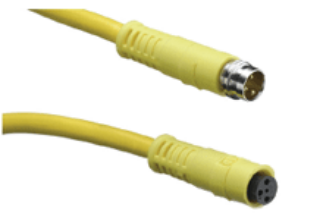

Picture of 5030P1B09M020 WOO
Actual Product May Vary From Image

5030P1B09M020 WOO

NC 3P FP 2M 90D LED PNP 24AWG
Manufacturer: Molex/Woodhead
Manufacturer part number: 5030P1B09M020
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Nano-Change® (M8)

Description

Nano-Change? (M8) Single-Ended Cordset, 3 Poles, Female (90?) to 3 Poles, 2.0m Length, with LEDs, PUR Cable, Snap Coupling

Specifications

Amperage Rating:4A
Cable Diameter:4.57mm (.180")
Cable Jacket Material:PUR
Cable Length:2.0m
Color:Yellow
Conductor Range:24
Connector Body Material:PVC
Connector End A:Nano-Change® (M8)
Connector End B:Pigtail
Country of Origin:MX
Environmental Conditions:IP67
Gender:Female-Pigtail
Keyway:None
LED Indicator:Yes
Plating Mating Material:Gold over Nickel
Temperature Rating:-25°C to +80°C
Voltage Rating:10-30V DC

Resources

Spec Sheet
