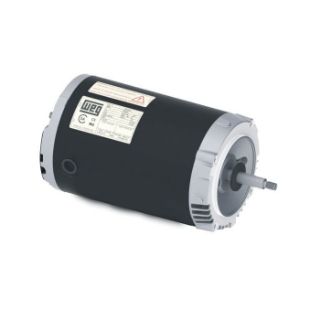

Picture of .5036OS3EJPR56C-S WEG
Actual Product May Vary From Image

.5036OS3EJPR56C-S WEG

WEG .5036OS3EJPR56C-S Continuous-Duty AC Motor, Open Drip-Proof Enclosure, 0.5 hp, 208/230/460 VAC, 60 Hz, 3 ph Phase, 56C Frame, 3495 rpm Speed, Footless Mount
Manufacturer: WEG
Manufacturer part number: .5036OS3EJPR56C-S
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

WEG

Type

Continuous-Duty

Alternate Supplier #

Applied Industrial Technologies - 110950672

Description

These versatile motors have the torque and durability for the toughest commercial applications, yet are also economical choices for residential applications. Available with or without base and in "J" and "C" configurations.
WEG AC Motor, Continuous-Duty, Jet Pump (JM/JP) Motors Application, 0.5 hp, 208/230/460 VAC, 1.98 to 1.79/0.897 A, 60 Hz Frequency, 3 ph ph, 3495 rpm Speed, Open Drip-Proof Enclosure, 56C Frame, CCW Rotation, 1.6 Service Factor, Ball Bearing, 0.741 ft-lb Torque, Footless Mounting, -20 to 40 deg C, Insulation Class: Class F, Rolled Steel, 10.315 in L Dimensions

Application

Jet Pump Applications

Standards

NEMA MG-1

Features

  • NEMA service factor
  • Automatic reset thermal overload protection
  • Stainless steel shaft end

Specifications

Amperage Rating:1.98 to 1.79/0.897 A
Application Type:Jet Pump (JM/JP) Motors
Bearing Type:Ball
Dimensions:10.315 in L
Enclosure Type:Open Drip-Proof
Frame:56C
Frequency Rating:60 Hz
Horsepower:0.5 hp
Insulation Class:Class F
Material:Rolled Steel
Mounting Type:Footless
Phase:3 ph
Rotation:CCW
Service Factor:1.6
Speed:3495 rpm
Temperature Rating:-20 to 40 deg C
Torque Rating:0.741 ft-lb
Voltage Rating:208/230/460 VAC
