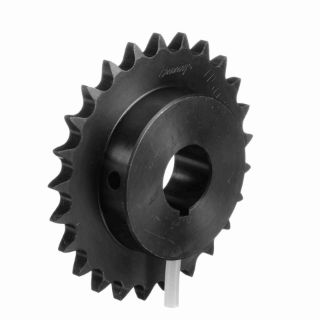

Actual Product May Vary From Image

5040X 1 1/2 BRN

Name: 5040X 1 1/2 BRN
Brand: Regal Rexnord
SKU: 5040X 1 1/2 BRN
Availability: OutOfStock

Browning® 3924479 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Keyway, 1-1/2 in Dia Bore, 8.316 in OD, #50 Chain, 40 Teeth, 5/8 in Pitch, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 3924479

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Single Strand Finished Bore Type 1

Description

Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.

Browning® Roller Chain Sprocket, Single Strand Finished Bore Type 1, 1-1/2 in Bore Dia, 8.316 in Outside Dia, #50 Chain, 40 Teeth, 5/8 in Pitch, 7.966 in, 3.516 in Hub Dia, 5/16 x 5/32 in Keyway, 1.078 in Length Through Bore, Split Taper Bushing, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
For use with 5/8 in pitch ANSI chain

Specifications

Bore Diameter:	1-1/2 in
Bushing Type:	Split Taper
Chain Size:	#50
Country of Origin:	US
Hub Diameter:	3.516 in
Keyway Size:	5/16 x 5/32 in
Length Through Bore:	1.078 in
Material:	Steel
Number of Teeth:	40
Outside Diameter:	8.316 in
Pitch:	5/8 in
Pitch Diameter:	7.966 in
