Actual Product May Vary From Image

507XH200 BRN

Name: 507XH200 BRN
Brand: Regal Rexnord
SKU: 507XH200 BRN
Availability: OutOfStock

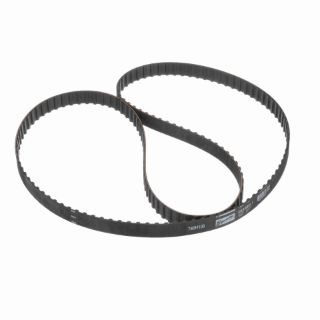

Browning® 3112638 Type XH Synchronous Belt, 58 Teeth, 7/8 in Pitch, 50-3/4 in OAL, 2 in W, Neoprene

Manufacturer: Regal Rexnord

Manufacturer part number: 3112638

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Browning®

Type XH

Browning® Gearbelt® Synchronous Belt, Type XH, 58 Teeth, 7/8 in Pitch, 50-3/4 in Overall Length, 2 in Width, 180 deg F, Neoprene

Aggregate, Cement, Agriculture, Minerals, Mining, Oil, Gas, Packaging Machinery and Unit Handling Industries

Molded teeth - shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
High tensile cord - specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
Compression section - bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
Dual timing belts - Browning® offers a full line of dual timing belts which can provide 100% load capacity form either side
Constant speed no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Wide belt speed range
