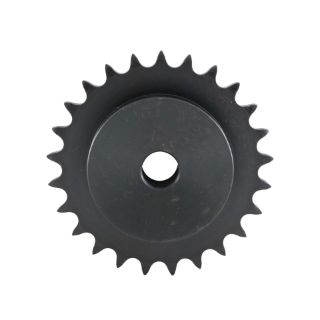

Actual Product May Vary From Image

50A112 UST

Name: 50A112 UST
Brand: US Tsubaki
SKU: 50A112 UST
Price: 194.31 USD
Availability: OutOfStock

Tsubaki® 50A112 Plain Bore Type A Single Pitch Roller Chain Sprocket, 0.938 in Dia Bore, 22.65 in OD, #50 Chain, 112 Teeth, 5/8 in Pitch, Carbon Steel

Manufacturer: US Tsubaki

Manufacturer part number: 50A112

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$194.31

Qty:

Product Details

Brand Name

Tsubaki®

Type

Plain Bore Type A

Alternate Supplier #

Applied Industrial Technologies - 105072020
Motion Industries - 00160800

Description

Associated with "A" style sprockets where there is no special machining performed to accommodate keyways or set screws, only a hole to accommodate shaft diameter.

Tsubaki® Single Pitch Roller Chain Sprocket, Plain Bore Type A, 0.938 in Bore Dia, 22.65 in Outside Dia, #50 Chain, 112 Teeth, 5/8 in Pitch, 22.284 in, 5/16 in Screw, 1/4 x 1/8 in Keyway, Carbon Steel

Application

Oil and Gas, Lumber, Mining, Primary Metals, Material Handling, Conveyor, Civil Engineering Projects, Machine Tool, Marine, Packaging Machinery, Pulp and Paper, Food Processing and Forestry

Standards

PTDA and CEMA Standard

Specifications

Bore Diameter:	0.938 in
Chain Size:	#50
Country of Origin:	CN
Keyway Size:	1/4 x 1/8 in
Material:	Carbon Steel
Number of Teeth:	112
Outside Diameter:	22.65 in
Pitch:	5/8 in
Pitch Diameter:	22.284 in
Screw Size:	5/16 in
