Actual Product May Vary From Image

50BTB17H MSG

Name: 50BTB17H MSG
Brand: Martin Sprocket & Gear
SKU: 50BTB17H MSG
Price: 50.28 USD
Availability: InStock

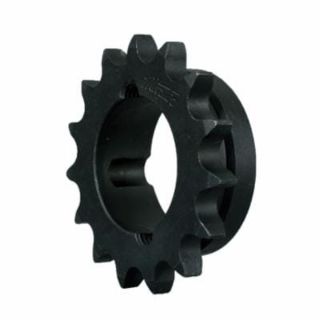

Martin Saber Tooth® 50BTB17H Taper Bushed Type B Single Pitch Roller Chain Sprocket With Hardened Teeth, 3.718 in OD, #50 Chain, 17 Teeth, 5/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 50BTB17H

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
1	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$50.28

Qty:

Product Details

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.

Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 3.718 in Outside Dia, #50 Chain, 17 Teeth, 5/8 in Pitch, 3.401 in, 2.781 in Hub Dia, 1 in Length Through Bore, 1610 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bushing Type:	1610 Taper Lock
Chain Size:	#50
Country of Origin:	US
Hub Diameter:	2.781 in
Length Through Bore:	1 in
Material:	Steel
Number of Teeth:	17
Outside Diameter:	3.718 in
Pitch:	5/8 in
Pitch Diameter:	3.401 in
