50BTB18H MSG

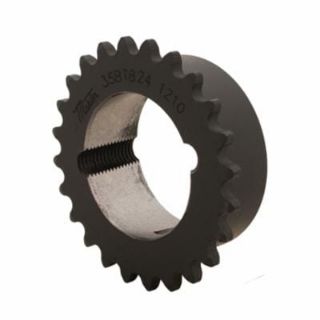

Picture of 50BTB18H MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
50BTB18H
product.name:
50BTB18H MSG
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
1
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$55.39 / EA

Description

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 3.92 in Outside Dia, #50 Chain, 18 Teeth, 5/8 in Pitch, 3.599 in, 2.781 in Hub Dia, 1-3/4 in Length Through Bore, 1610 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bushing Type:1610 Taper Lock
Chain Size:#50
Country of Origin:US
Hub Diameter:2.781 in
Length Through Bore:1-3/4 in
Material:Steel
Number of Teeth:18
Outside Diameter:3.92 in
Pitch:5/8 in
Pitch Diameter:3.599 in

Products Specifications

ANSI Sprocket Number
50
Brand Name
Martin Sprocket & Gear
Number of Teeth
18
Type
Hardened Taper Bushed Sprocket
