50BTB30H MSG

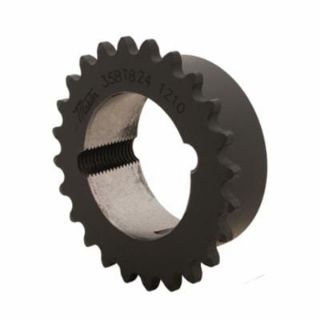

Picture of 50BTB30H MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
50BTB30H
product.name:
50BTB30H MSG
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
1
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$87.48 / EA

Description

Brand Name

Martin

Type

Taper Bushed Type B

Description

A hardened taper bushed sprocket is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip. Taper bushed sprockets have a tapered bushing bolted into a taper bore with hex head set screws instead of bolts.
Martin Saber Tooth® Single Pitch Roller Chain Sprocket, Taper Bushed Type B, 6.321 in Outside Dia, #50 Chain, 30 Teeth, 5/8 in Pitch, 5.979 in, 3.563 in Hub Dia, 1-1/4 in Length Through Bore, 2012 Taper Lock Bushing, Steel

Standards

PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Features

  • Manufactured of high carbon steel
  • Precise machining and processes ensure consistent finish and high quality
  • Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain

Specifications

Bushing Type:2012 Taper Lock
Chain Size:#50
Country of Origin:US
Hub Diameter:3.563 in
Length Through Bore:1-1/4 in
Material:Steel
Number of Teeth:30
Outside Diameter:6.321 in
Pitch:5/8 in
Pitch Diameter:5.979 in

Products Specifications

ANSI Sprocket Number
50
Brand Name
Martin Sprocket & Gear
Number of Teeth
30
Type
Hardened Taper Bushed Sprocket
