Actual Product May Vary From Image

50NP O/L MOR

Name: 50NP O/L MOR
Brand: Regal Rexnord
SKU: 50NP O/L MOR
Availability: OutOfStock

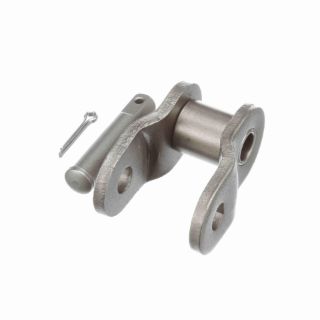

Morse® 321320 Standard Duty Offset Link With Cotter Pin and Spring Clip, 50N Chain, 5/8 in Pitch, 0.79 in OAW, 0.2 in Dia Pin, Steel

Manufacturer: Regal Rexnord

Manufacturer part number: 321320

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Standard Duty

Description

Regular offset links are used (one per chain) when a chain length contains an odd number of pitches. Regular offset links are standard for all pitches in both single-width and multiple width roller chains. The pin has a slip fit in both plates and is flat on one end to prevent rotation.

Morse® Offset Link, Standard Duty, 50N Chain, 5/8 in Pitch, 0.79 in Overall Width, 0.2 in Pin Diameter, 0.584 in Link Plate Height, 0.08 in Link Plate Thickness, Steel, Nickel Plated

Application

Oil Industry Machinery, Paper Industry Machinery, Rubber, Plastic Industry Equipment and Textile Industries

Standards

ANSI B29.1

Features

1-strand

Specifications

Chain Size:	50N
Country of Origin:	CN
Finish:	Nickel Plated
Link Plate Height:	0.584 in
Link Plate Thickness:	0.08 in
Material:	Steel
Overall Width:	0.79 in
Pin Diameter:	0.2 in
Pitch:	5/8 in
