Actual Product May Vary From Image

50NZ02 BSF

Name: 50NZ02 BSF
Brand: Bussmann
SKU: 50NZ02 BSF
Price: 42.45 USD
Availability: OutOfStock

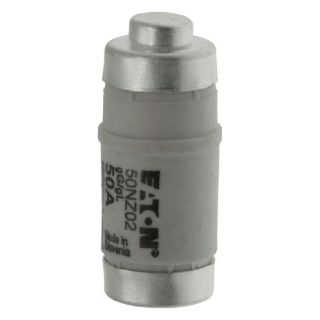

Bussmann 50NZ02 Type D0 Size D02 Neozed Time Delay Fuse Link, 50 A, 400 V, 100 kA Interrupt, Class: gG/gL, Round Body

Manufacturer: Bussmann

Manufacturer part number: 50NZ02

Availability: Expected Leadtime 71 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$42.45

Qty:

Product Details

Brand Name

Bussmann

Type

Type D0 Size D02 Neozed Time Delay

Description

Eaton's Bussmann series low voltage D and D0 bottle fuses are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both D and D0 fuse types are available in three operating characteristics: time delay, fast acting and ultra rapid versions that can fit into screw cap fuse carriers for mounting on 1 or 3 pole DIN-Rail or panel mount

Bussmann Fuse Link, Type D0 Size D02 Neozed Time Delay, Indicating/Non-Indicating: Non-Indicating, 50 A, 400 V, 100 kA Interrupt, Class: gG/gL, Cartridge Terminal, Holder Mount, Round Body Type, Ceramic, White, 15 mm Dia x 36 mm L Body Size

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, For the protection of general industrial applications such as power distribution and control and cable protection, stationary machine equipment in factory - robotics

Standards

CE Certified | DIN 49515 | GOST-R Certified | IEC 60269 | VDE Approved

Features

Characteristics to suit the protection needs of inductive and resistive loads
Fast trouble shooting with easily visible fuse operated pin indicator
Historically reliable range
Fit into screw cap fuse link carriers for mounting in 1/3-pole DIN rail or screw fixing

Specifications

Amperage Rating:	50 A
Body Size:	15 mm Dia x 36 mm L
Body Type:	Cartridge
Class:	gG/gL
Color:	White
Country of Origin:	SI
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	100 kA
Material:	Ceramic
Mounting Type:	Holder
Terminal Type:	Cartridge
Voltage Rating:	400 V
