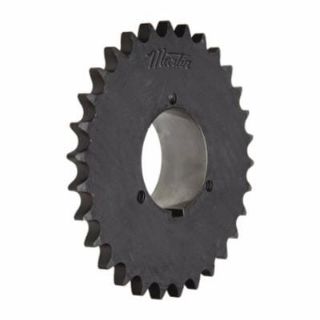

Actual Product May Vary From Image

50Q40 MSG

Name: 50Q40 MSG
Brand: Martin Sprocket & Gear
SKU: 50Q40 MSG
Price: 138.48 USD
Availability: OutOfStock

Martin 50Q40 MST® Q1 Bushed Type 4 Welded Split Single Roller Chain Sprocket, 0.75 to 2.688 in Dia Bore, 8.316 in OD, 50 Chain, 40 Teeth, 5/8 in Pitch, Steel

Manufacturer: Martin Sprocket & Gear

Manufacturer part number: 50Q40

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$138.48

Qty:

Product Details

Brand Name

Martin

Type

MST® Q1 Bushed Type 4 Welded

Description

Martin split taper sprocket is another style of bushed sprocket. The split taper bushing, when installed, offers a wide range of bore sizes.

Martin Split Single Roller Chain Sprocket, MST® Q1 Bushed Type 4 Welded, 0.75 to 2.688 in Bore Dia, 8.316 in Outside Dia, 50 Chain, 40 Teeth, 5/8 in Pitch, 7.966 in, 4-1/4 in Hub Dia, 1/2 in W Keyway, 2-1/2 in Length Through Bore, Type Q1 Split Taper Bushing, Steel

Specifications

Bore Diameter:	0.75 to 2.688 in
Bushing Type:	Type Q1 Split Taper
Chain Size:	50
Country of Origin:	US
Hub Diameter:	4-1/4 in
Keyway Size:	1/2 in W
Length Through Bore:	2-1/2 in
Material:	Steel
Number of Teeth:	40
Outside Diameter:	8.316 in
Pitch:	5/8 in
Pitch Diameter:	7.966 in
