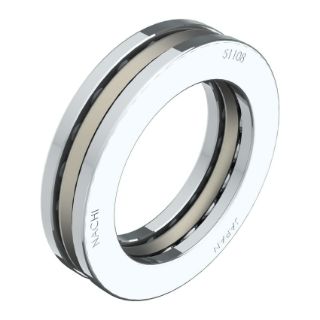

Actual Product May Vary From Image

51104 BLT

Name: 51104 BLT
Brand: Nachi Bearings
SKU: 51104 BLT
Price: 26.09 USD
Availability: InStock

NACHI 51104 51100 Thrust Ball Bearing, 20 mm Dia Bore, 35 mm OD, 10 mm W, 14300 N Dynamic/24700 N Static Load

Manufacturer: Nachi Bearings

Manufacturer part number: 51104

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
4	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$26.09

Qty:

Product Details

Brand Name

NACHI

Description

NACHI Thrust Ball Bearing, Series: 51100, 20 mm Bore, 35 mm OD, 10 mm Width, Flat Back Face, Single Thrust Direction, 14300 N Dynamic/24700 N Static Load, 5200 rpm Grease/8000 rpm Oil Maximum

Application

Crane Hooks and Other Machine Applications

Features

Thrust ball bearings are designed to handle axial loads only
Thrust ball bearings consist of ball, retainer, both shaft and housing washers which contain grooves for the balls and can be subject to axial load only
The bearings with spherical housing washer can prevent static misalignment

Specifications

Bore Diameter:	20 mm
Country of Origin:	JP
Face Type:	Flat Back
Load Capacity:	14300 N Dynamic/24700 N Static
Maximum Speed:	5200 rpm Grease/8000 rpm Oil
Outside Diameter:	35 mm
Series:	51100
Thrust Direction:	Single
Width:	10 mm
