51117 FAG

Name: 51117 FAG
Brand: INA
SKU: 51117 FAG
Price: 228.67 USD
Availability: OutOfStock

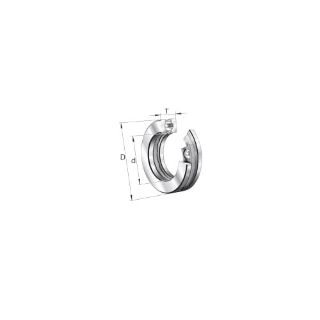

FAG 51117 Axial Deep Groove Ball Bearing, 85 mm Dia Bore, 110 mm OD, 1 Rows, 19 mm W, 45500 N Dynamic /134000 N Static Load

Manufacturer: INA

Manufacturer part number: 51117

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$228.67

Qty:

Product Details

Brand Name

FAG

Description

FAG Axial Deep Groove Ball Bearing, Series: 511 Series, 85 mm Bore Dia, 110 mm Outside Dia, 1 Rows, 19 mm Width, Separable Face, Single Thrust Direction, 45500 N Dynamic /134000 N Static, Steel Bearing, 4500 rpm Maximum, -30 to 150 deg C

Standards

Meets to DIN 711/ISO 104

Features

Sheet steel cage

Specifications

Bearing Material:	Steel
Bore Diameter:	85 mm
Face Type:	Separable
Load Capacity:	45500 N Dynamic /134000 N Static
Maximum Speed:	4500 rpm
Number of Rows:	1
Outside Diameter:	110 mm
Series:	511 Series
Temperature Rating:	-30 to 150 deg C
Thrust Direction:	Single
Width:	19 mm
