Actual Product May Vary From Image

51201 FAG

Name: 51201 FAG
Brand: INA
SKU: 51201 FAG
Price: 43.80 USD
Availability: OutOfStock

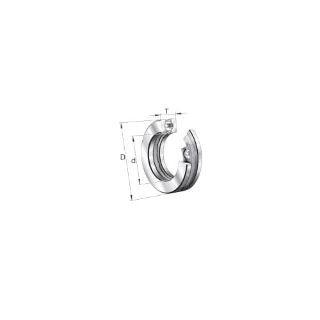

FAG 51201 Axial Deep Groove Ball Bearing, 12 mm Dia Bore, 28 mm OD, 1 Rows, 11 mm W, 13200 N Dynamic/19000 N Static Load

Manufacturer: INA

Manufacturer part number: 51201

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$43.80

Qty:

Product Details

Brand Name

FAG

Description

FAG Axial Deep Groove Ball Bearing, Series: 512 Series, 12 mm Bore Dia, 28 mm Outside Dia, 1 Rows, 11 mm Width, Separable Face, Single Thrust Direction, 13200 N Dynamic/19000 N Static, Steel Bearing, 11300 rpm Maximum, -30 to 150 deg C

Standards

Meets to DIN 711/ISO 104

Features

Sheet steel cage

Specifications

Bearing Material:	Steel
Bore Diameter:	12 mm
Face Type:	Separable
Load Capacity:	13200 N Dynamic/19000 N Static
Maximum Speed:	11300 rpm
Number of Rows:	1
Outside Diameter:	28 mm
Series:	512 Series
Temperature Rating:	-30 to 150 deg C
Thrust Direction:	Single
Width:	11 mm
