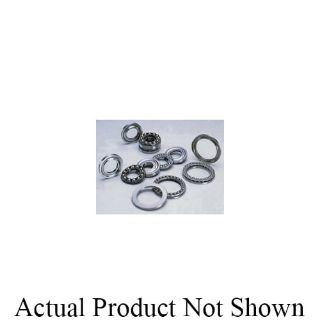

Actual Product May Vary From Image

51204 NAC

Name: 51204 NAC
Brand: Nachi Bearings
SKU: 51204 NAC
Availability: OutOfStock

NACHI 51204S1 Open Thrust Ball Bearing, 20 mm Dia Bore, 40 mm OD, 14 mm W, 22200 N Dynamic/37500 N Static Load

Manufacturer: Nachi Bearings

Manufacturer part number: 51204S1

Availability: Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

NACHI

Type

Open

Description

Ball thrust bearings consist of two grooved plates with a ball and cage assembly. Depending upon the size, they have a polyamide (G) or stamped steel cage. These bearings can sustain a high axial load in only one direction and are not intended for high speed or misalignment applications.

NACHI Thrust Ball Bearing, Open, Series: 512, 20 mm Bore, 40 mm OD, 14 mm Width, Flat Back Face, Single Thrust Direction, 22200 N Dynamic/37500 N Static Load, 4200 rpm Grease/6300 rpm Oil Maximum

Application

Crane Hooks and Other Machine

Features

Heavy axial loads in one direction
High rigidity
Separable
Long life

Specifications

Bore Diameter:	20 mm
Face Type:	Flat Back
Load Capacity:	22200 N Dynamic/37500 N Static
Maximum Speed:	4200 rpm Grease/6300 rpm Oil
Outside Diameter:	40 mm
Series:	512
Thrust Direction:	Single
Width:	14 mm
