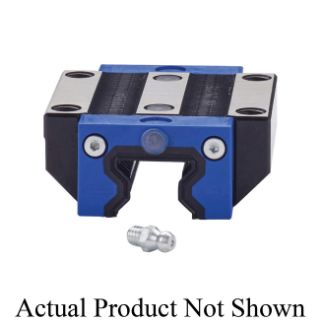

Actual Product May Vary From Image

512P35B3N THO

Name: 512P35B3N THO
Brand: Thomson Industries
SKU: 512P35B3N THO
Availability: OutOfStock

Thomson® 512P35B3N 500 Roller Carriage, Standard Long Block Style, 35 mm W Rail, 136 mm L x 100 mm W x 40 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 512P35B3N

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Roller Carriage, Series: 500, Standard Long Block Style, 35 mm W Rail, 100 mm Width, 40 mm Height, 136 mm Length, 48 mm Slide Height, M10 Carriage Hole, For Use With: 522P35A 6000 mm L Standard Single Piece Profile Rail, 71500 N Dynamic/128500 N Static Load, 3 m/s Maximum, Steel Carriage, -40 to 80 deg C

Standards

RoHS Compliant

Features

Smooth, quiet movement through patented insert molded recirculation paths and optimized geometries
Simple installation and greater accuracy with joint-free rails up to 6 m
Superior rigidity and design flexibility
The carriage has built-in under carriage low drag longitudinal seals that protect the rollers and roller track surfaces from contamination
The rolling elements of the carriages are retained within the bearing so the carriage can be removed from the rail or the end cap from the carriage
Precision grade accuracy class
Approximately 0.13 clearance preload

Includes

Oil Reservoir

Specifications

Carriage Hole Size:	M10
Carriage Material:	Steel
Country of Origin:	DE
Height:	40 mm
Length:	136 mm
Load Capacity:	71500 N Dynamic/128500 N Static
Maximum Speed:	3 m/s
Rail Size:	35 mm W
Series:	500
Slide Height:	48 mm
Style:	Standard Long Block
Suitable For Use With:	522P35A 6000 mm L Standard Single Piece Profile Rail
Temperature Rating:	-40 to 80 deg C
Width:	100 mm
