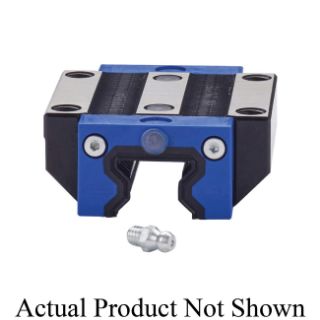

Actual Product May Vary From Image

512U55A2NC THO

Name: 512U55A2NC THO
Brand: Thomson Industries
SKU: 512U55A2NC THO
Availability: OutOfStock

Thomson® 512U55A2NC 500 Roller Carriage, Standard Block Style, 55 mm W Rail, 163.5 mm L x 140 mm W x 57 mm H

Manufacturer: Thomson Industries

Manufacturer part number: 512U55A2NC

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Description

Thomson® Roller Carriage, Series: 500, Standard Block Style, 55 mm W Rail, 140 mm Width, 57 mm Height, 163.5 mm Length, 70 mm Slide Height, M14 Carriage Hole, For Use With: 522U55A 6000 mm L Standard Single Piece Profile Rail, 131900 N Dynamic/237000 N Static Load, 3 m/s Maximum, Steel Carriage, -40 to 80 deg C

Standards

RoHS Compliant

Features

Smooth, quiet movement through patented insert molded recirculation paths and optimized geometries
Simple installation and greater accuracy with joint-free rails up to 6 m
Superior rigidity and design flexibility
The carriage has built-in under carriage low drag longitudinal seals that protect the rollers and roller track surfaces from contamination
The rolling elements of the carriages are retained within the bearing so the carriage can be removed from the rail or the end cap from the carriage
Ultra precision grade accuracy class
Approximately 0.08 clearance preload

Includes

Bellow Clips and Oil Reservoir

Specifications

Carriage Hole Size:	M14
Carriage Material:	Steel
Country of Origin:	DE
Height:	57 mm
Length:	163.5 mm
Load Capacity:	131900 N Dynamic/237000 N Static
Maximum Speed:	3 m/s
Rail Size:	55 mm W
Series:	500
Slide Height:	70 mm
Style:	Standard Block
Suitable For Use With:	522U55A 6000 mm L Standard Single Piece Profile Rail
Temperature Rating:	-40 to 80 deg C
Width:	140 mm
