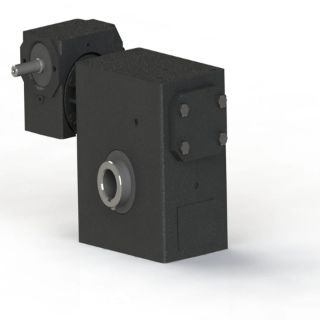

Actual Product May Vary From Image

5202 75/1 WR STD HUB

Name: 5202 75/1 WR STD HUB
SKU: 5202 75/1 WR STD HUB
Availability: OutOfStock

Hub City® PowerCubeX® 0230-39842 5200 Double Reduction Right Angle Standard Worm Gear Reducer, Shaft Input, Hollow Bore Output, 9.65 hp Input, 75:1 Gear, 23.3 rpm Maximum Output, 17840 in-lb Output Torque Rating

Manufacturer part number: 0230-39842

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Double Reduction Right Angle Standard

Description

Hub City® PowerCubeX® Worm Gear Reducer, Double Reduction Right Angle Standard, Series: 5200, 75:1 Gear Ratio, 9.65 hp Input, Shaft Input, Hollow Bore Output, 0.875 in Dia x 2.38 in L Input, 23.3 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 17840 in-lb Output, 5.16 in Centre Distance, 3/16 x 3/32 in Input Keyway, 68.4 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting
QD™ bushings provide widest possible range of bore size in shaft mounted models

Specifications

Centre Distance:	5.16 in
Efficiency:	68.4 %
Gear Ratio:	75:1
Horsepower:	9.65 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	0.875 in Dia x 2.38 in L
Input Type:	Shaft
Keyway Size:	3/16 x 3/32 in Input
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	23.3 rpm
Output Type:	Hollow Bore
Series:	5200
Torque Rating:	17840 in-lb Output
